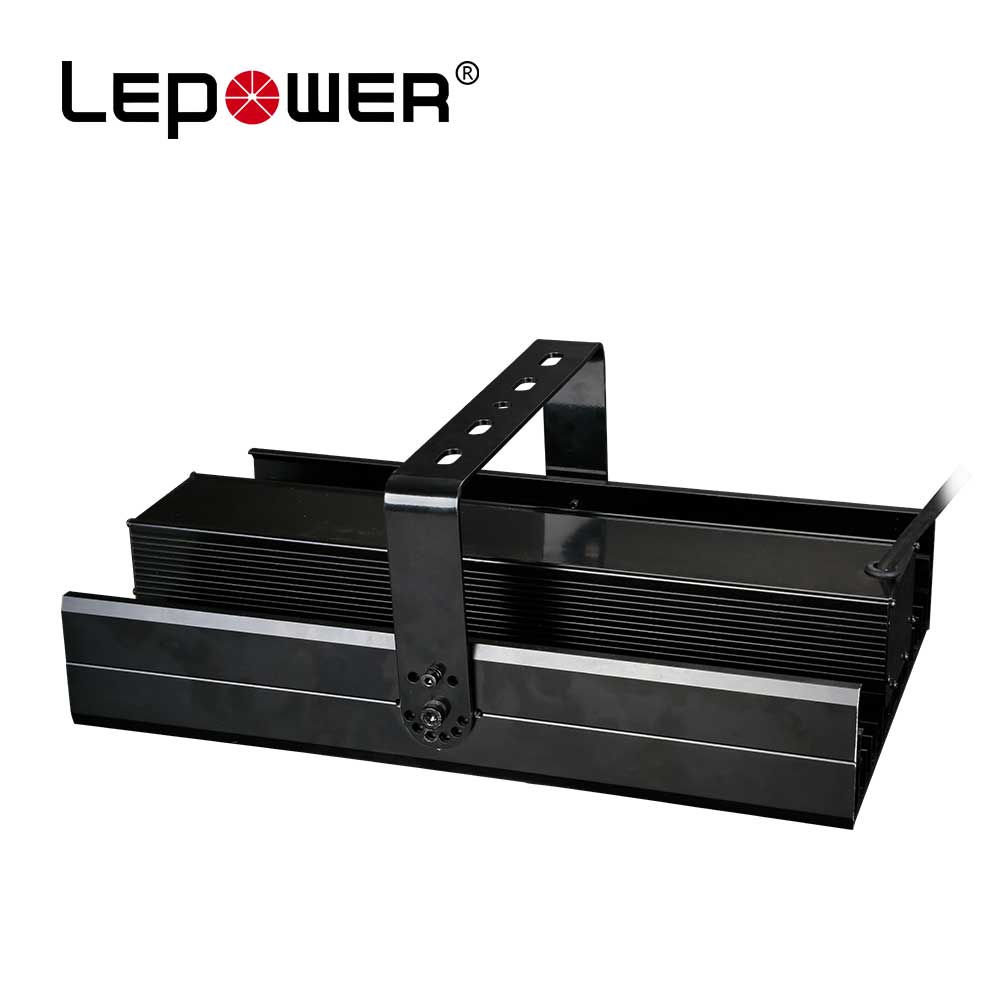

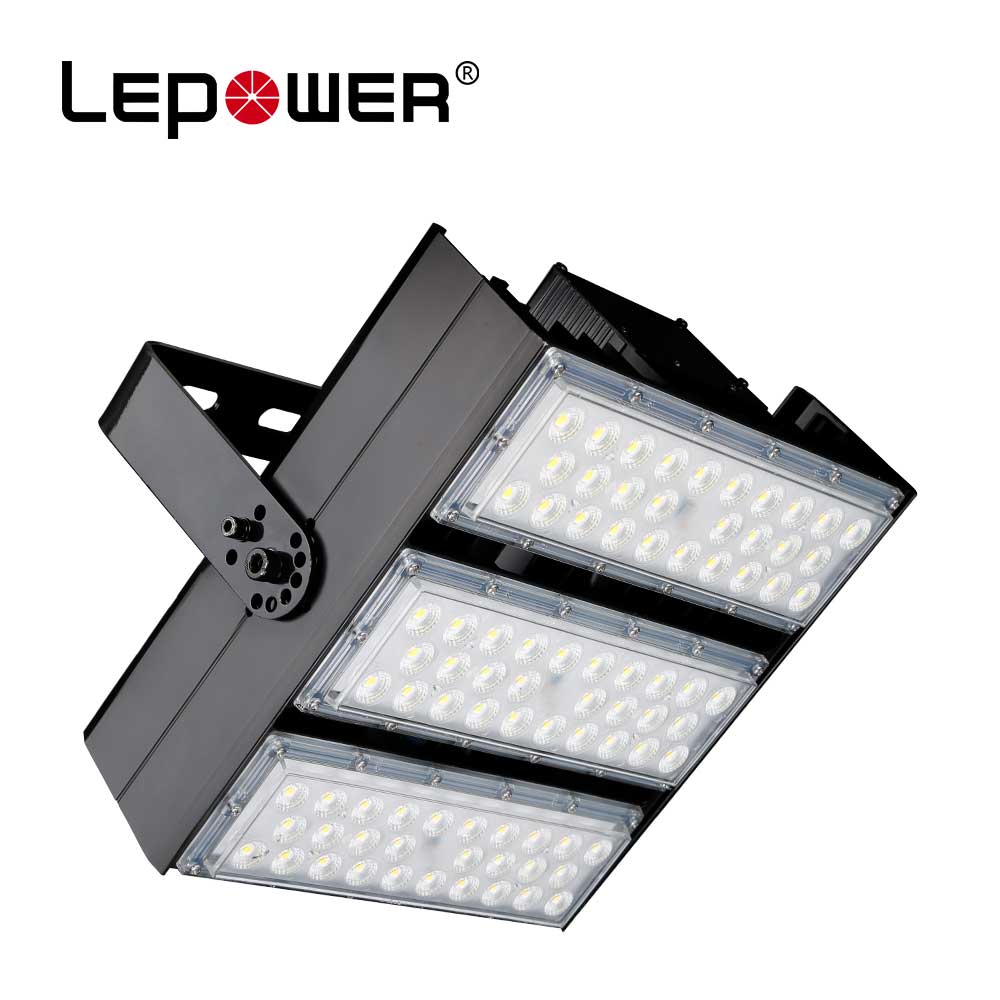

CB CE LM80 Exterior Carpark Lighting 100W 120W Sports lighting 150W LED Floodlighting with Meanwell driver, IP67

1 / 5

CB CE LM80 Exterior Carpark Lighting 100W 120W Sports lighting 150W LED Floodlighting with Meanwell driver, IP67

Send Inquiry

Product Description

A professional manufacturer which owns an ISO9001 16000m² factory.

More than 100,000 pcs of LED industrial lights are installed worldwide every year!

We accept OEM & ODM services. Welcome to contact us now.

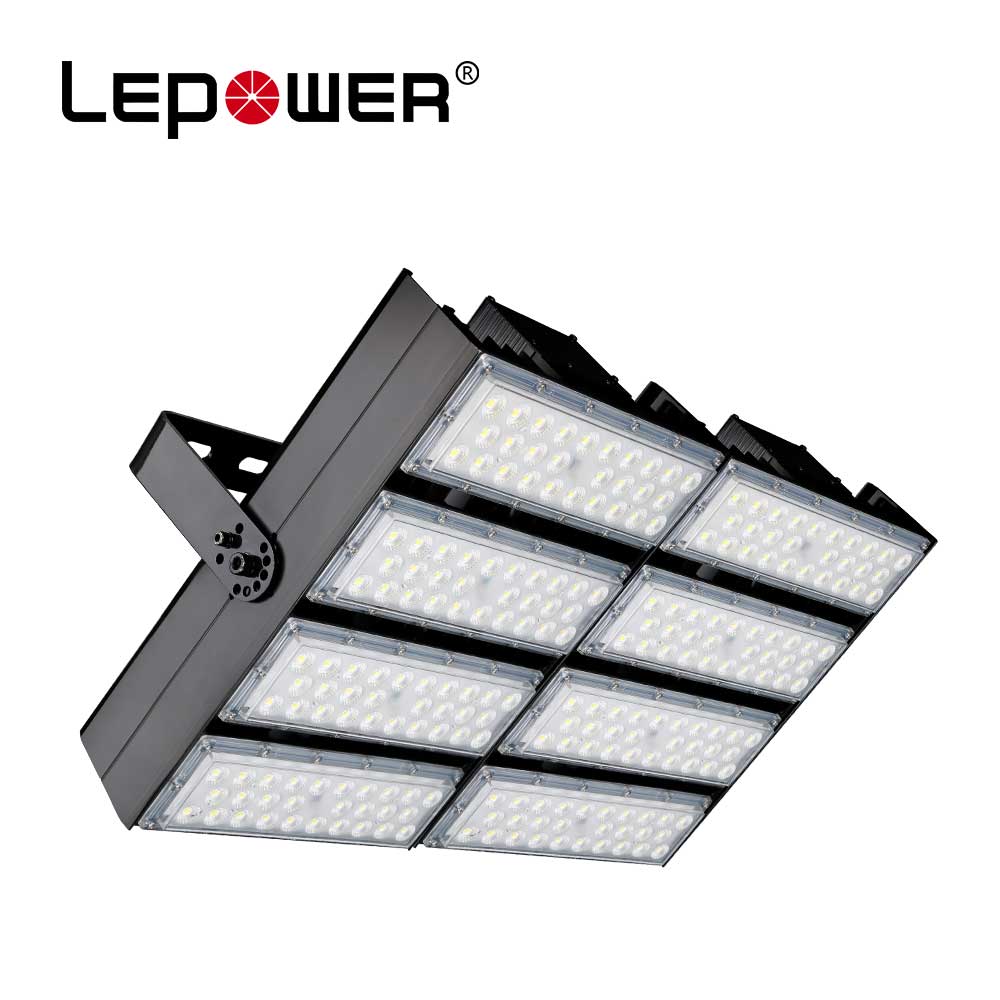

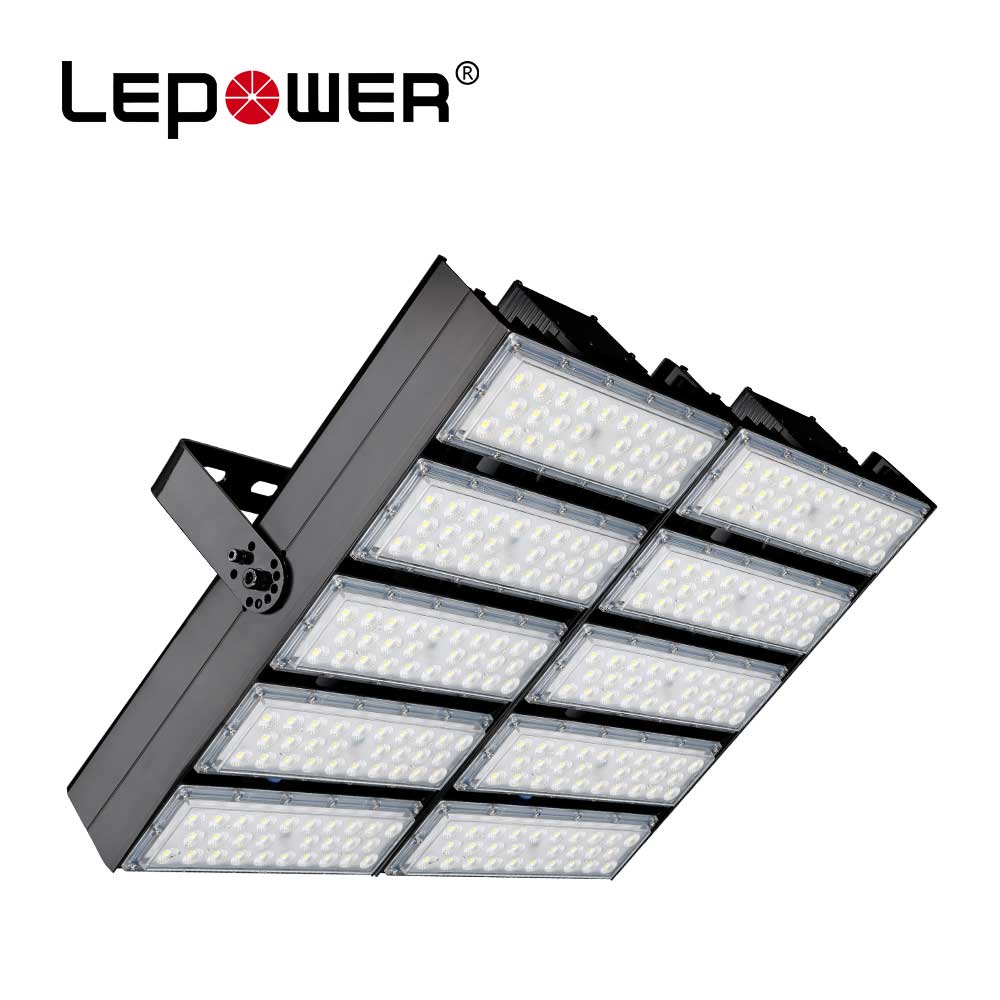

Product Overview CB CE LM80 Exterior Carpark Lighting 100W 120W Sports lighting 150W LED Floodlighting with Meanwell driver, IP67

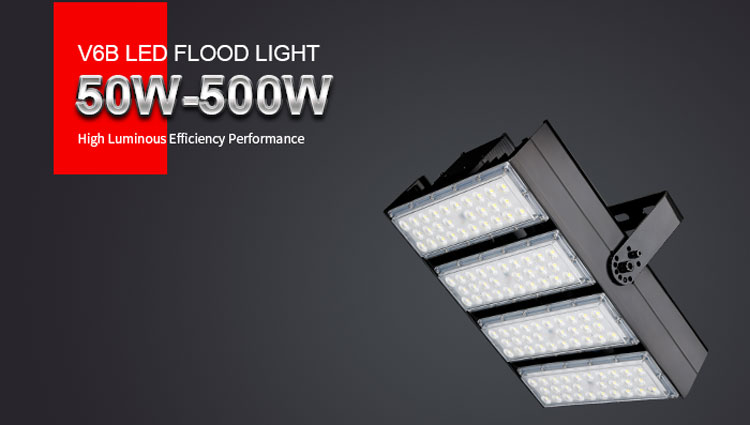

Parameters The features of 50w-200w led flood light series.

Part Number	LY-HB0601	LY-LHB0602	LY-HB0603	LY-HB0604
Wattage	50w	100W	150W	200W
Lumen Output	7500-8000lm	15000-16000lm	22500-24000lm	30000-32000lm
Luminous Efficacy	150-160lm/W	150-160lm/W	150-160lm/W	150-160lm/W
Input Voltage	90-305V AC/200-240V AC 50-60Hz
Beam Angle	10°/25°/45°/60°/90°/145x90°/150x70°
CCT	2800~6500K
CRI	≥70 or ≥80
IP & IK Rating	IP66 & IK10
Surge protection	Line earth 4KV, Line-line 10KV/20KV available
Power factor	>0.95
Power efficiency	88%	92%	92%	92%
THD	<15% or <20%
Working temperature	-40℃~50℃ 20%~90% RH
Storage temperature	-40℃~85℃ 10%~90% RH
Housing material	AL6063-T5
Housing color	Black
Insulation	Class 2
Options	PWM / DALI / 1-10V / Timing
Lifespan	>50,000Hrs
Lamp size	260105195mm	260168195mm	260258195mm	348260195mm
Packing	4pcs/ctn 450280215mm	3pcs/ctn 600310255mm	2pcs/ctn 585310255mm	1pcs/ctn 400310255mm
N.W.	2.5kg	3.0kg	4.0kg	5.0kg

Parameters The features of 250w-500w led flood light series.

Wattage	LY-HB0605	LY-HB0606	LY-HB0608	LY-HB0610
Lumen Output	250W	300W	400W	500W
Luminous Efficacy	37500-40000lm	45000-48000lm	60000-64000lm	75000-78000lm
Input Voltage	150-160lm/W	150-160lm/W	150-160lm/W	150-160lm/W
Beam Angle	10°/25°/45°/60°/90°/145x90°/150x70°
CCT	2800~6500K
CRI	≥70 or ≥80
IP & IK Rating	IP66 & IK10
Surge protection	Line earth 4KV, Line-line 10KV/20KV available
Power factor	>0.95
Power efficiency	92%	92%	92%	92%
THD	<15% or <20%
Working temperature	-40℃~50℃ 20%~90% RH
Storage temperature	-40℃~85℃ 10%~90% RH
Housing material	AL6063-T5
Housing color	Black
Insulation	Class 2
Options	PWM / DALI / 1-10V / Timing
Lifespan	>50,000Hrs
Lamp size	438260195mm	520258195mm	520348195mm	520438195mm
Packing	1pcs/ctn 490310255mm	1pcs/ctn 570310255mm	1pcs/ctn 570400260mm	1pcs/ctn 570490255mm
N.W.	6.0kg	9.0kg	11kg	13kg

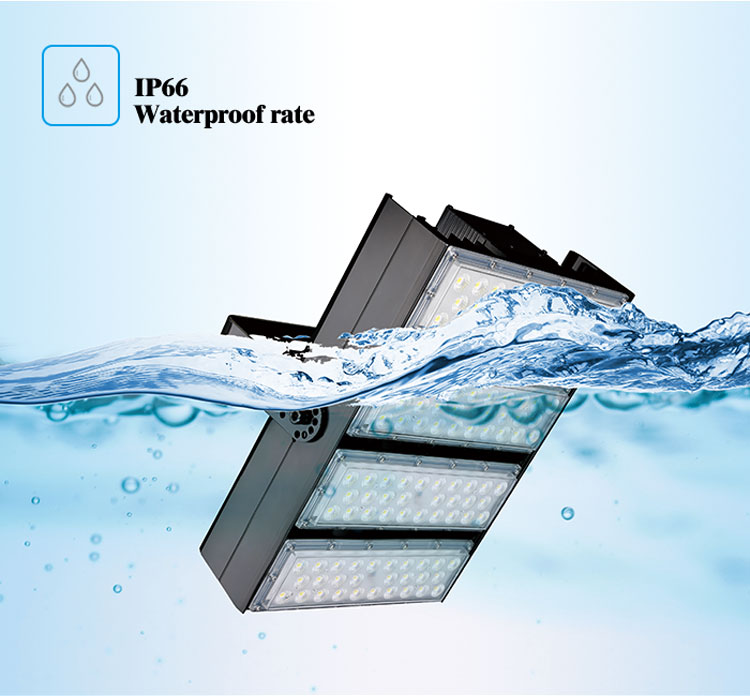

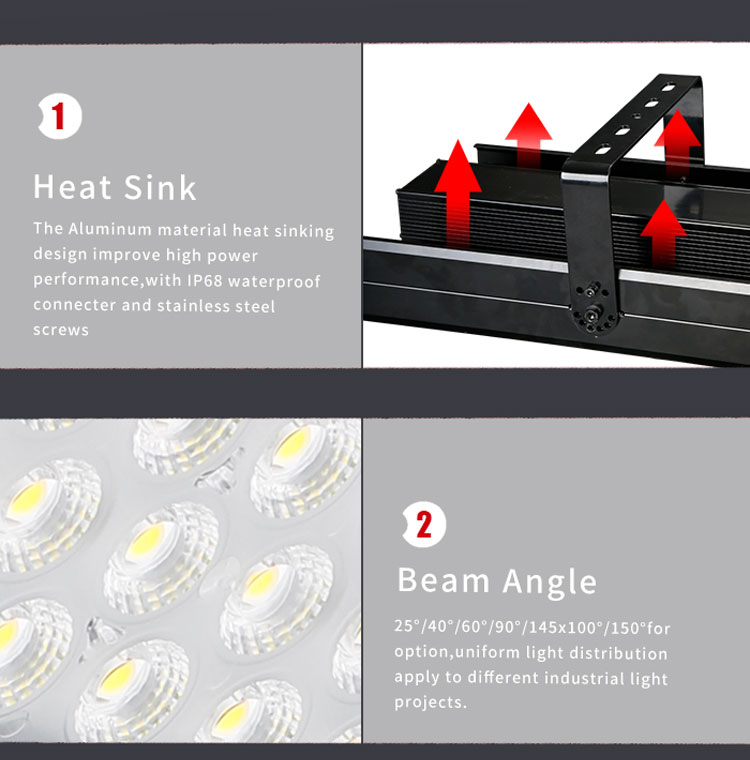

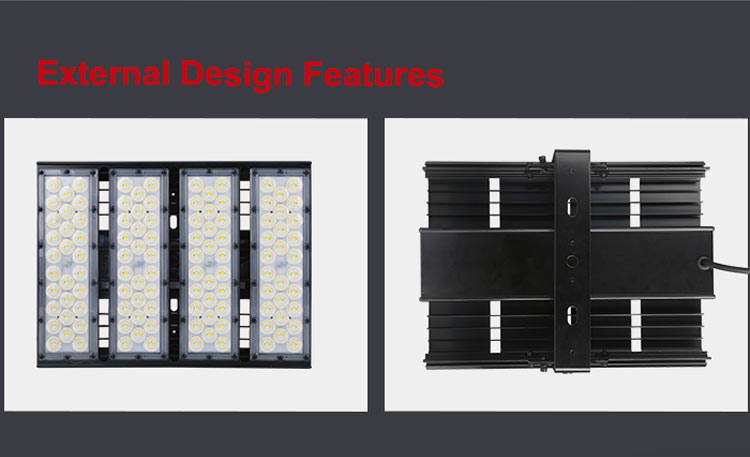

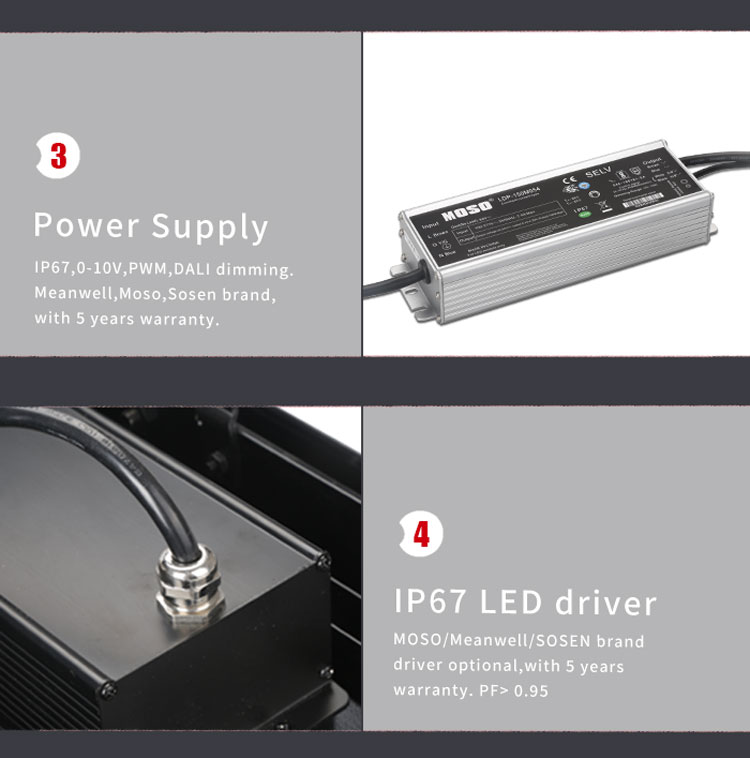

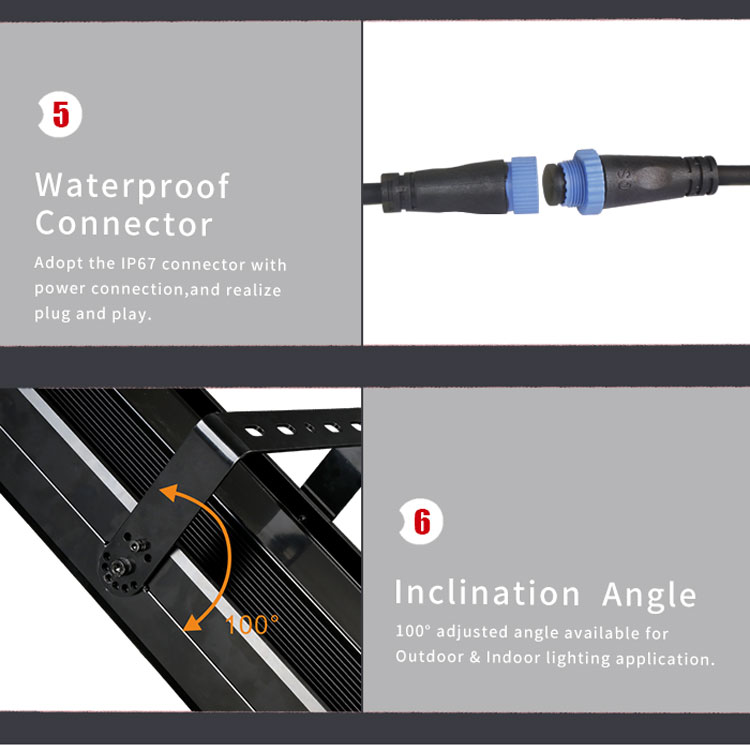

Gallery The details pictures of 50W-500w led flood light.

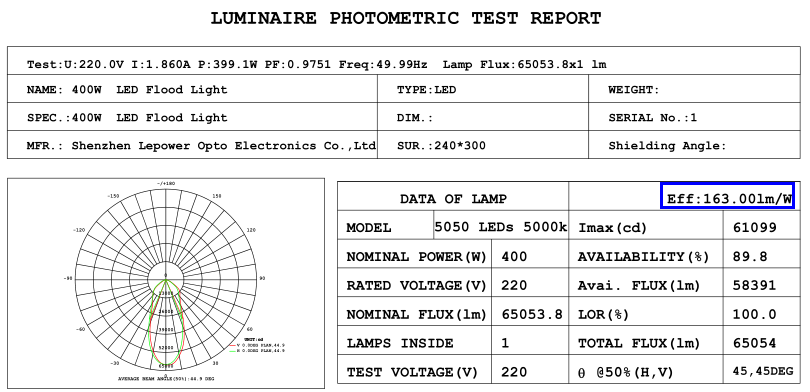

IES Testing The IES test report of led flood light.

Super high lumen LED flood light. 20% luminous output increase compared to normal LED lights.

200w >32000lm 400w >62000lm

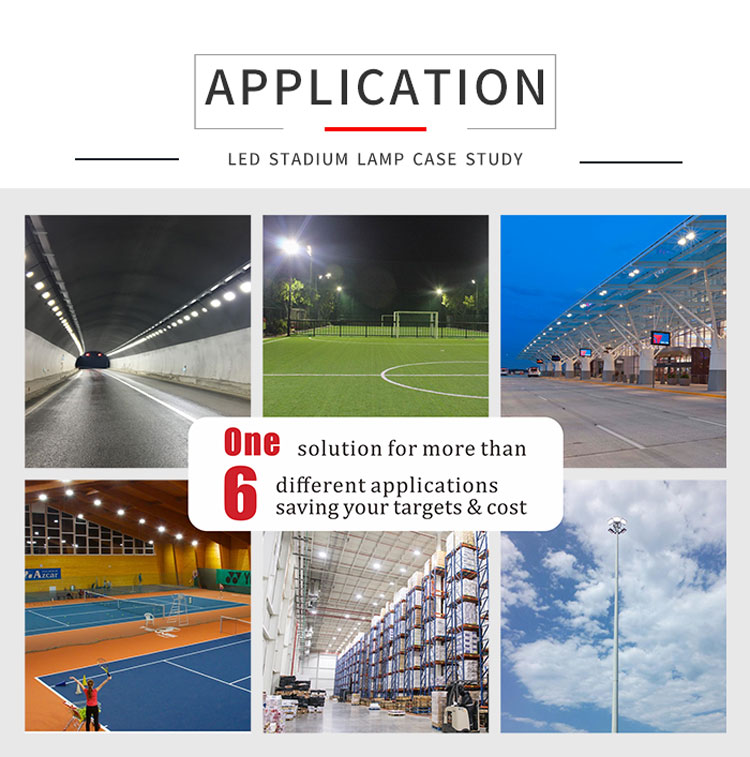

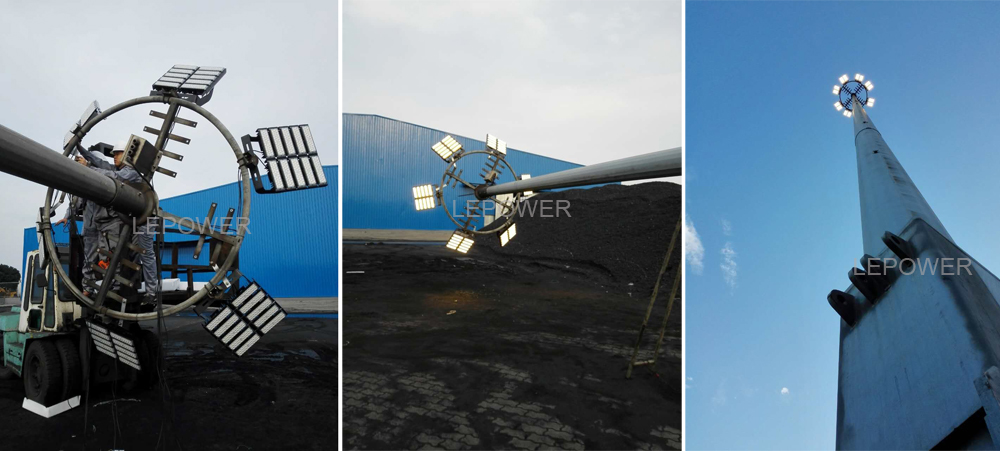

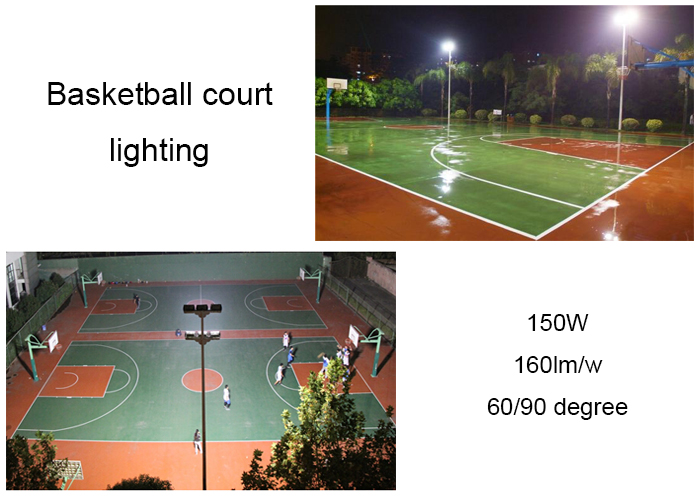

Application The application of 500w led flood light.

Suitable for stadium, tennis court, soccer field, basketball field, playground, airport, city plaza, sea port etc. wide range lighting applications.

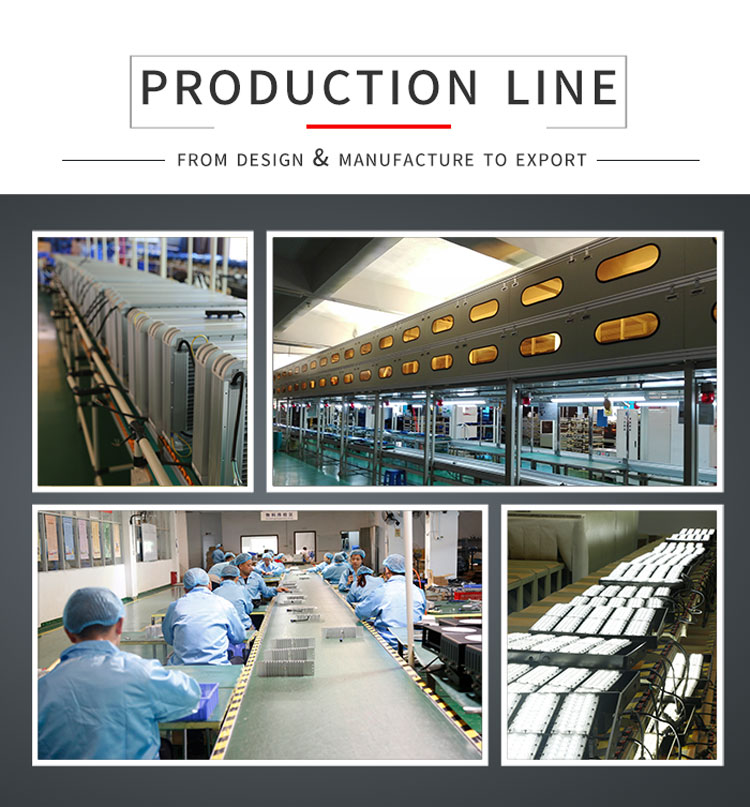

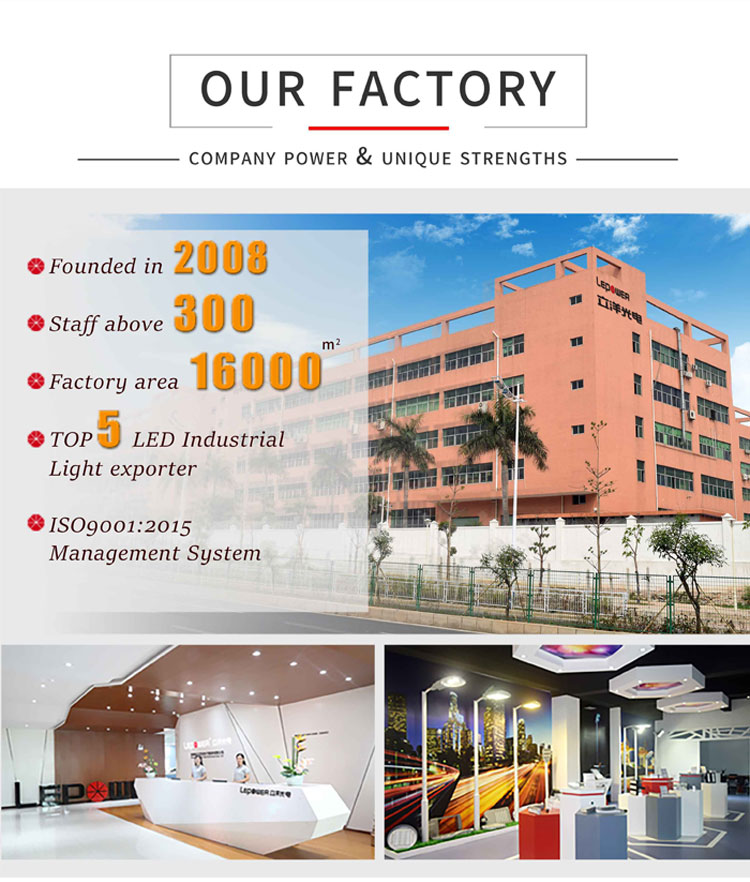

Facility The pictures of our factory's building, office, certificate and production line.

Trading Conditions

Payment term: 30% deposit by T/T or Western Union; 70% before delivery.
Delivery time: 7-9 days for 50pcs; 15 days for 500pcs.
Samples time: 5 days.
Shipping terms: FOB Port.
Discounts are determined by quantity.
Welcome distributors to cooperate together.

Quality Control

Before the order is confirmed, we will strictly check the material & color temperature by sample.
We will trace different phases of production from the very beginning.
Every LED light quality is checked & cleaned before packing.
Before delivery, clients can send a QC or point a third party to check the quality.
We will try our best to help clients when problems occur.

Warranty Terms

3 / 5 years warranty.
Under this warranty, if a failure occurs under normal usage within the warranty period, we will provide free/rework new products based on proof-documents.
If failure or damage is due to incorrect operation, wire connection, or not following our instructions, we will provide paid maintenance.
Certifications: UL, CB, SAA, CE, RoHS, TUV.

FAQ Frequently Asked Questions

Q1. Can we make our own label on the sample lights?

Yes, we can use the label you offer. We also provide OEM & ODM services.

Q2. Our project is on the seaside, what if your lights get corroded by sea water?

The metal housing features high corrosion resistance. Additionally, our specialized surface treatments, electrostatic spraying, and electrophoresis, effectively protect our lights from salt water corrosion.

Q3. I would like to try a sample first, is that possible?

Yes, absolutely. Our MOQ is only 1 piece, making it easy to test our quality and build a long-term, win-win partnership.

Q4. We have a football stadium project and need a lighting design. Can you help us?

Sure we can. We are a leading outdoor high-power LED floodlight and lighting design provider. Our design team can provide the best solution, or we can provide IES files for your own design.

Q5. I have a stadium / sports field. What is your suggestion?

Please provide us with the following information to help us suggest the best setup:
1. The size of the sports area.
2. The installation height of the lights.
3. The required level of illumination.

Q6. What certifications and warranty coverage do your lights have?

Our lights carry UL, CB, SAA, CE, RoHS, and TUV certifications. We provide a 3 to 5-year warranty, offering free replacements or rework for normal usage failures with valid proof.

We will bring you new, better, and professional lighting solutions.
