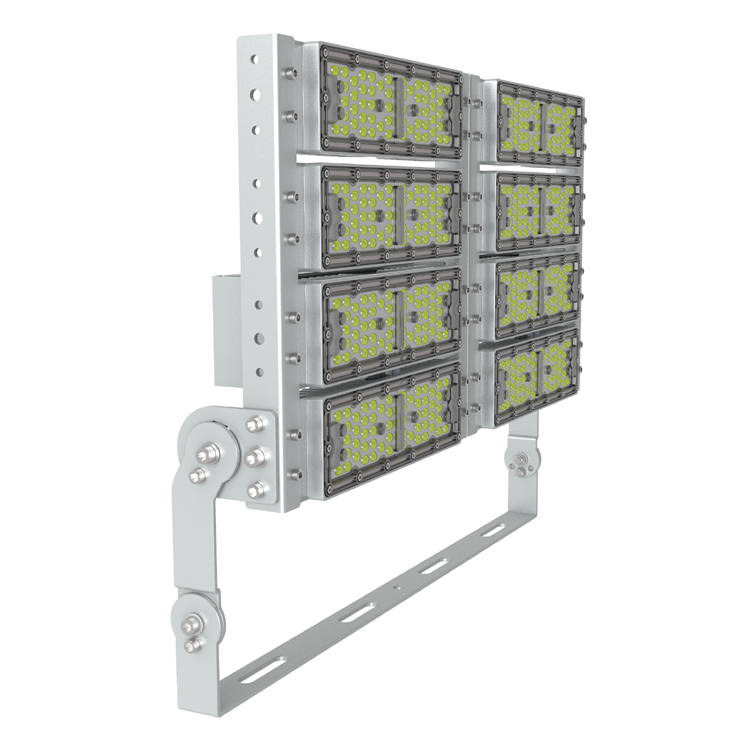

| Specification parameters | |
|---|---|
| Product Specification | |
| Model No. | SW-TN510 |

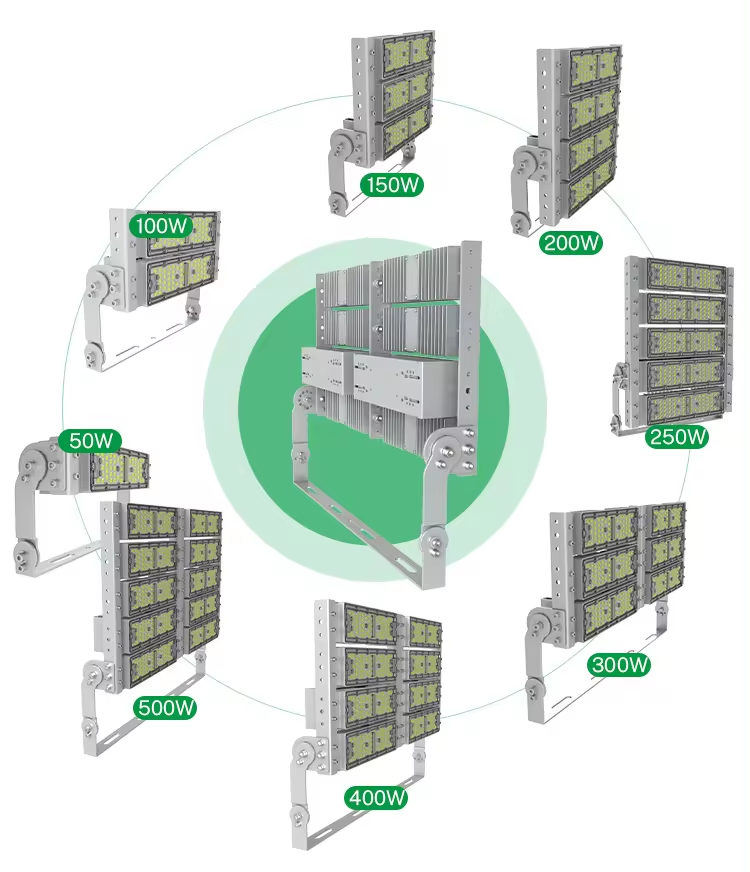

| Rated Power | 500w, 400w, 300w, 200w, 150w, 100w, 50w |
| Input Voltage | 12V/AC100-277V, 50/60Hz, 0.91A (at 220v); 347V, 480V for option |
| PF | >0.97 |

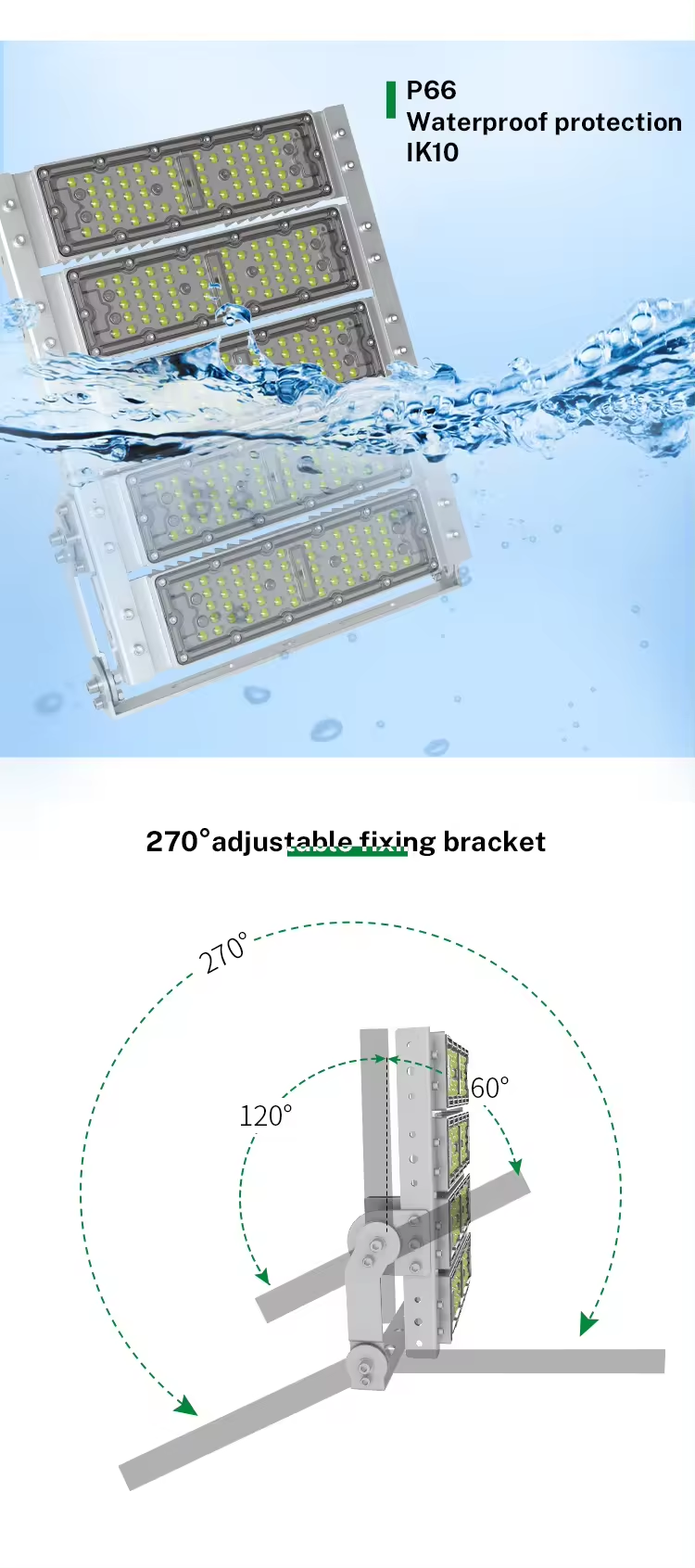

| IP Grade | IP66 |
| THD | 10% (at 230v, 50Hz) |
| LED Parameters | |
| LED chip | High efficiency LED chip |
| Light Flux | 140-150Lm/W, 150-160Lm/W |
| Color Temperature | 2700-7000k |
| CRI | >70Ra or 80Ra |

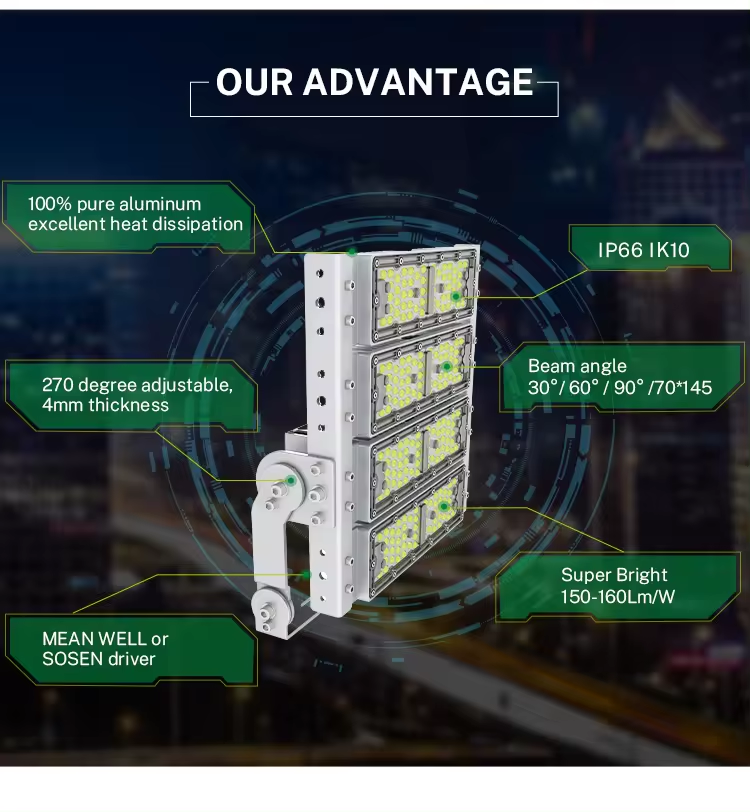

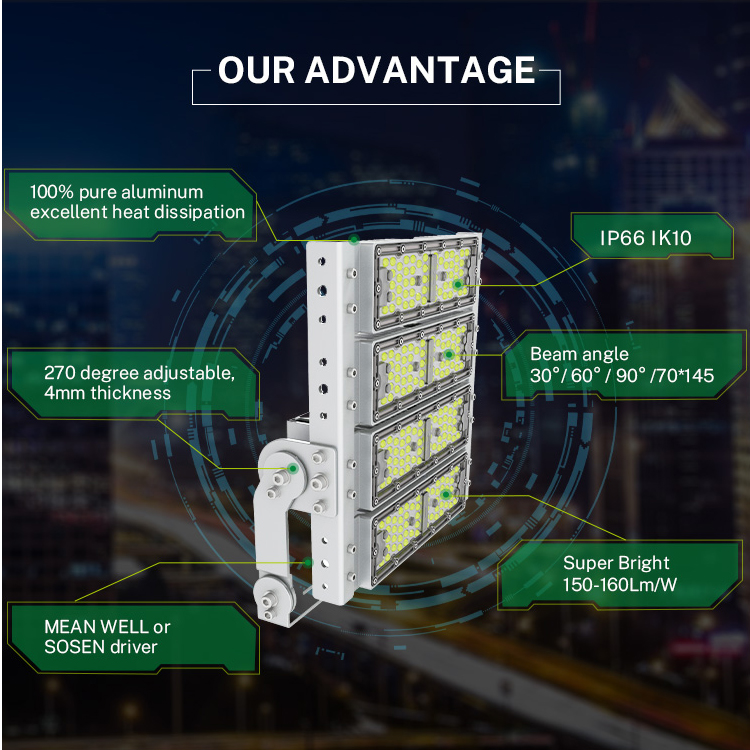

| Beam Angle | 30°, 60°, 90°, 120° and 70*145 (asymmetrical) |

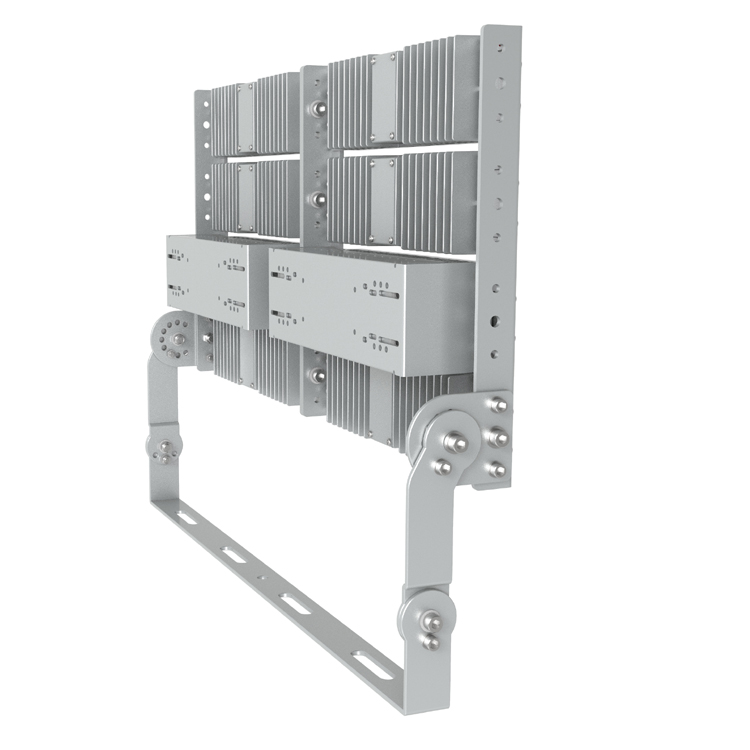

| Mechanical Specification | |

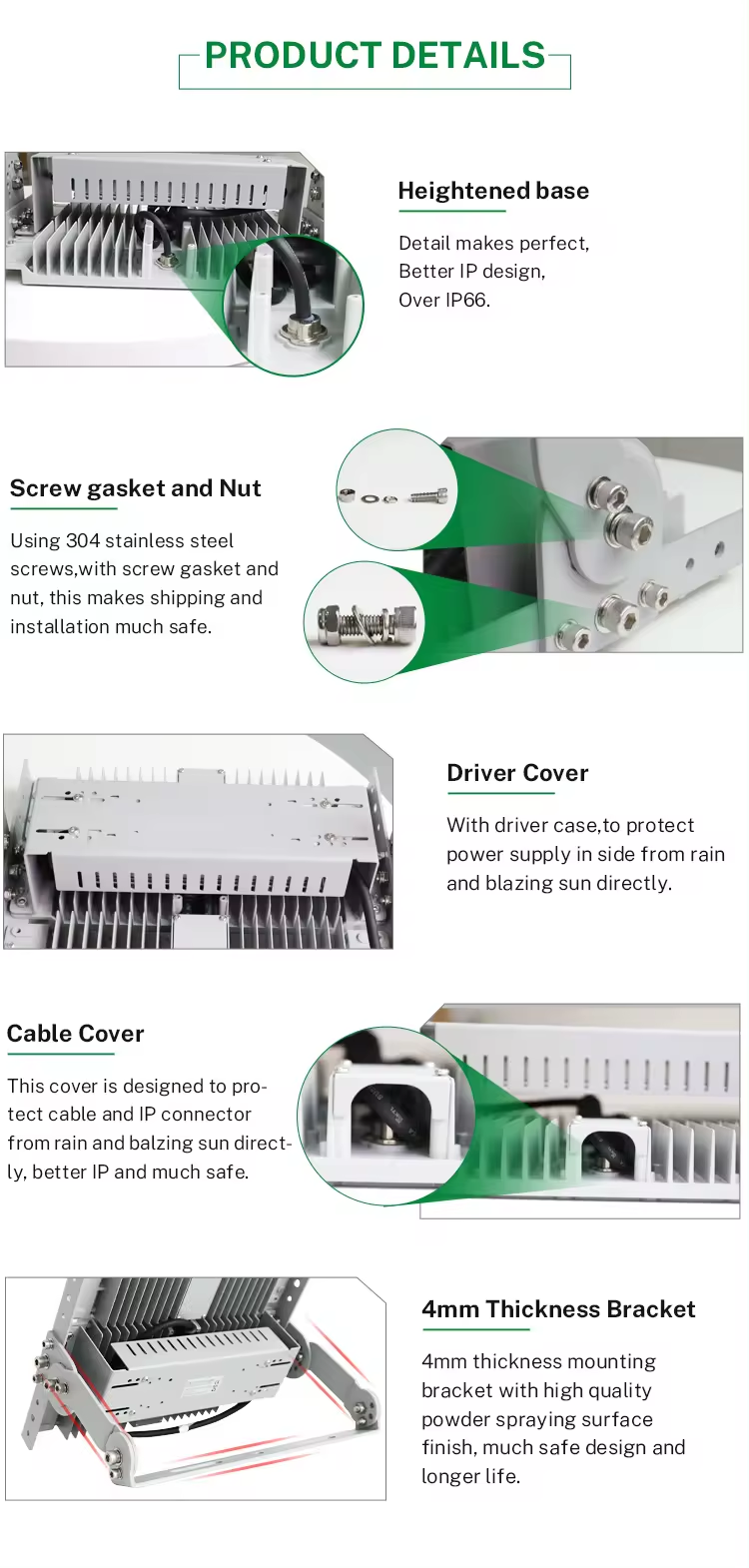

| Body Material | Die casting aluminum |
| Lens Material | PC lens |
| Body color | grey |
| Operating Temperature | -35℃ - 50℃ |
| Warranty | 7 years warranty |
| Certificates | CE, RoHS, SAA |

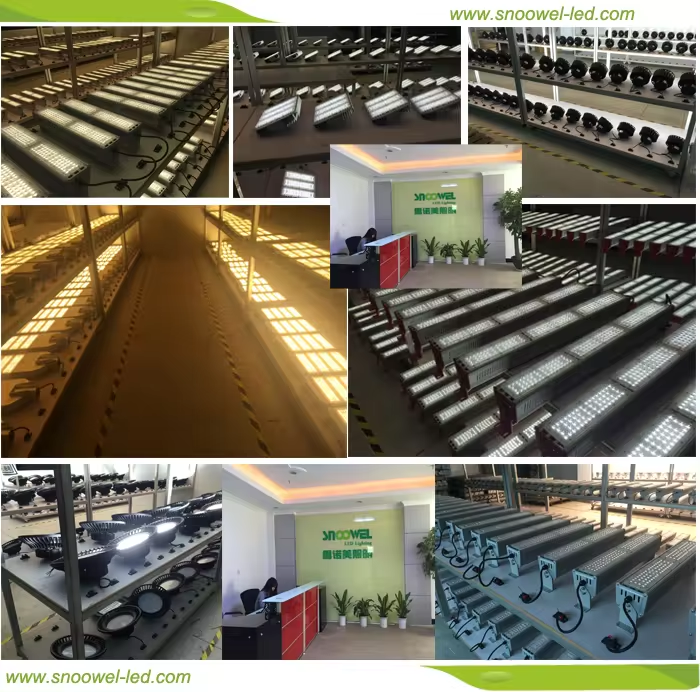

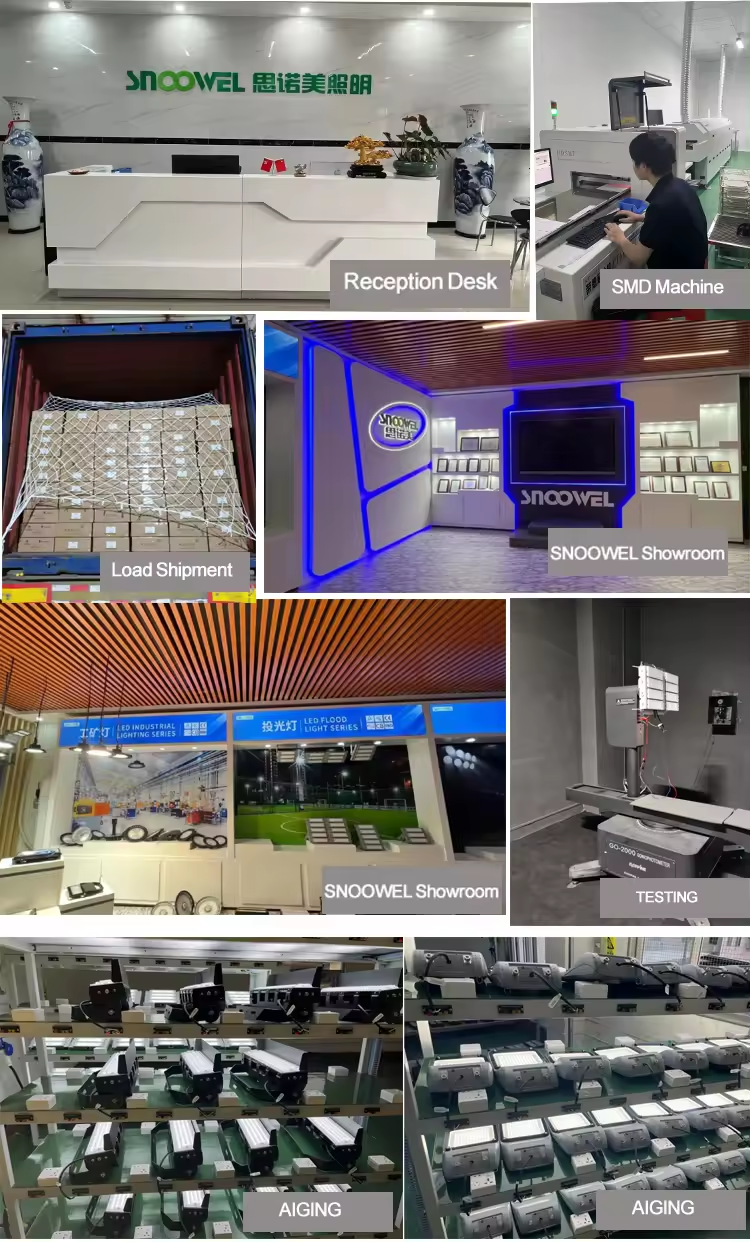

SNOOWEL was established in 2007. Now it is an ISO factory, mainly producing and exporting outdoor led lights and industrial led lights.
Our main markets are in Europe, South America, Australia, and also exported to North America and some Asian markets. All of our items are with CE (EMC, LVD), ROHS, and many of them are with ETL, DLC, ENEC, SAA, etc.
We have 17 years experience in led lighting field, featuring a well-trained team to research and develop new products, and a responsible QC team to control the quality from material selection to finished products delivery.

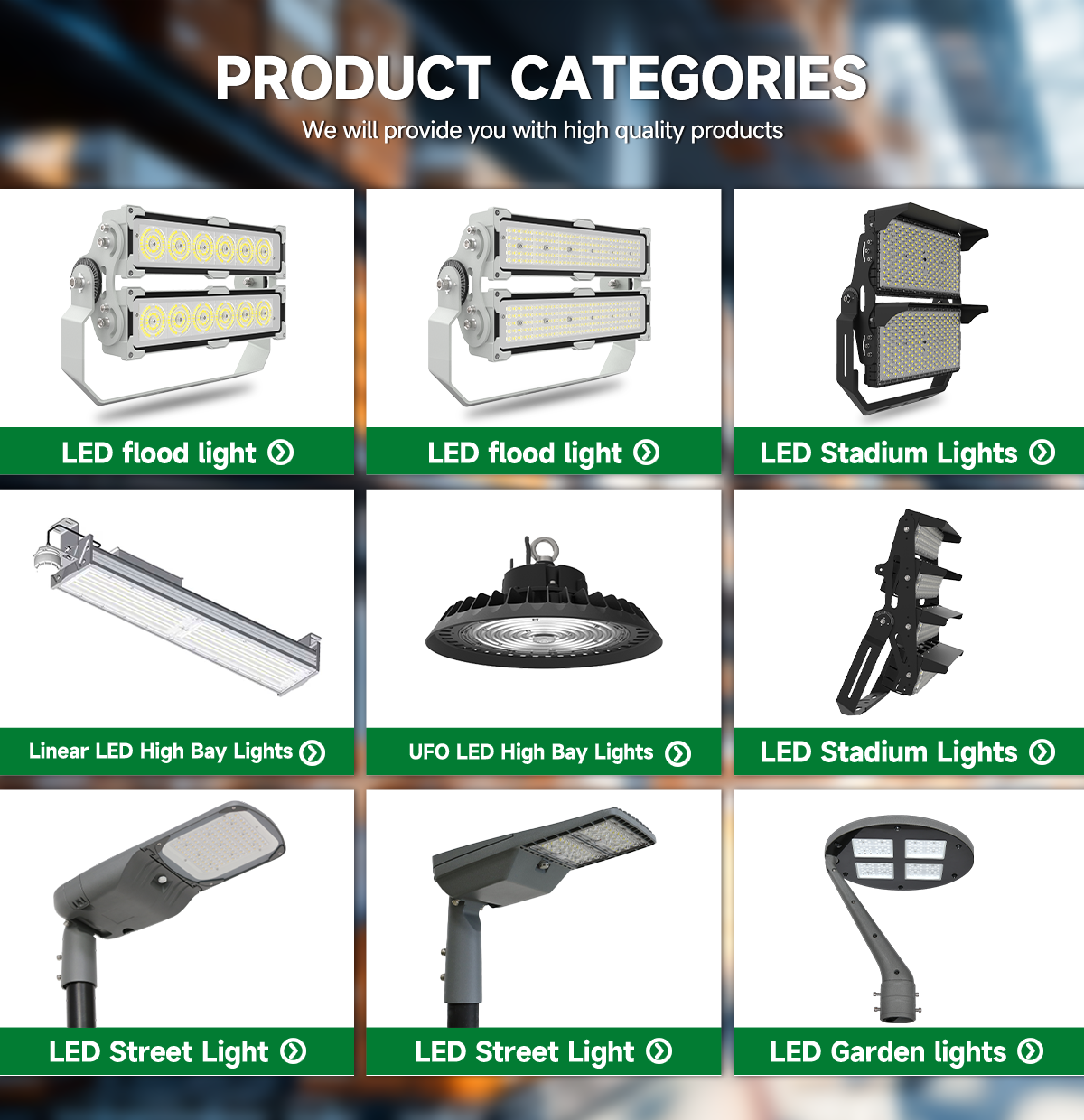

SNOOWEL products include LED Flood Light, LED Stadium Lights, LED Tunnel Lights, LED Street Light, UFO LED High Bay Light, Linear LED High Bay, LED Shoebox Lights, LED Canopy Light, LED Garden Light, LED Facade Lights, LED Spotlight Series, which are widely used. We have a variety of indoor and outdoor products that can meet your needs.
